Boot Lichee RV Dock

• Download source code from buildroot .
• Go to the buildroot root directory and run the following commands:
  • make sipeed_lichee_rv_dock_defconfig
  • make all - If the command is executed successfully, an image named sdcard.img will be generated in the ./buildroot/output/images directory.

    • buildroot will download many packages from different repositories after running make all, and you may need a VPN to speed up the process.
    • If you're having trouble with the build process, maybe you can get more details from buildroot README.

• Please refer to this page to install Etcher.


  If cannot install Etcher by sudo apt install balena-etcher, please refer to https://github.com/balena-io/etcher/issues/4059#issue-1686399813.

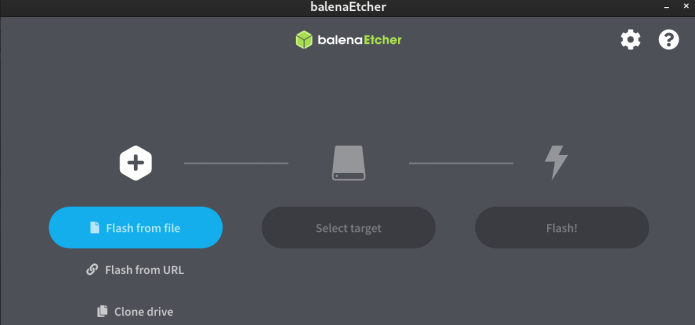

• Run balena-etcher & to start Etcher in the background. This command will open a graphics window.



• Click on the following icons in turn and select what you need.
  • Flash from file - Select the sdcard.img generated by buildroot in step Make image with buildroot.
  • Select target - Select the SD card device to be used for flashing.

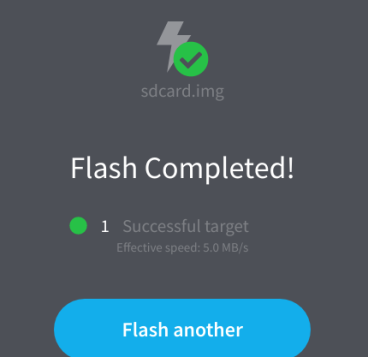

  • Flash! - Flash sdcard.img to the SD card device.



Insert the SD card into the Lichee board and connect the serial. Then power on. The following video shows the Linux boot process.
